S&S Cycle 53-80 BT Oil Passage Drill Jig
Regular price
$72.20 USD
Couldn't load pickup availability
Ready to install and hit the road!
All parts come with the essentials you need for a smooth fit and clear instructions. From performance upgrades to custom styling, unbox and get your ride ready with confidence!
Got questions?
Feel free to get in touch

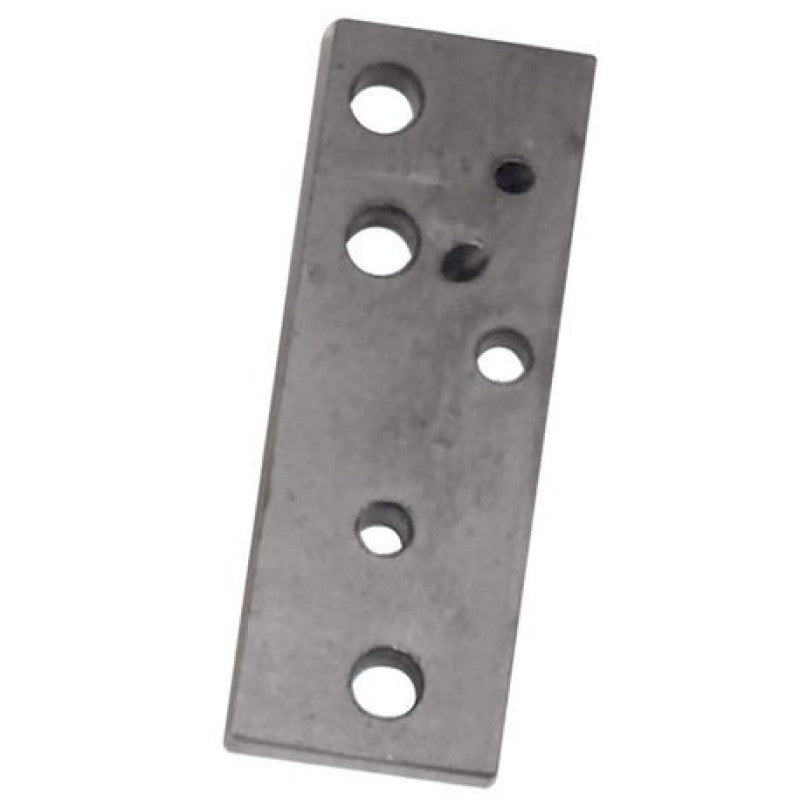

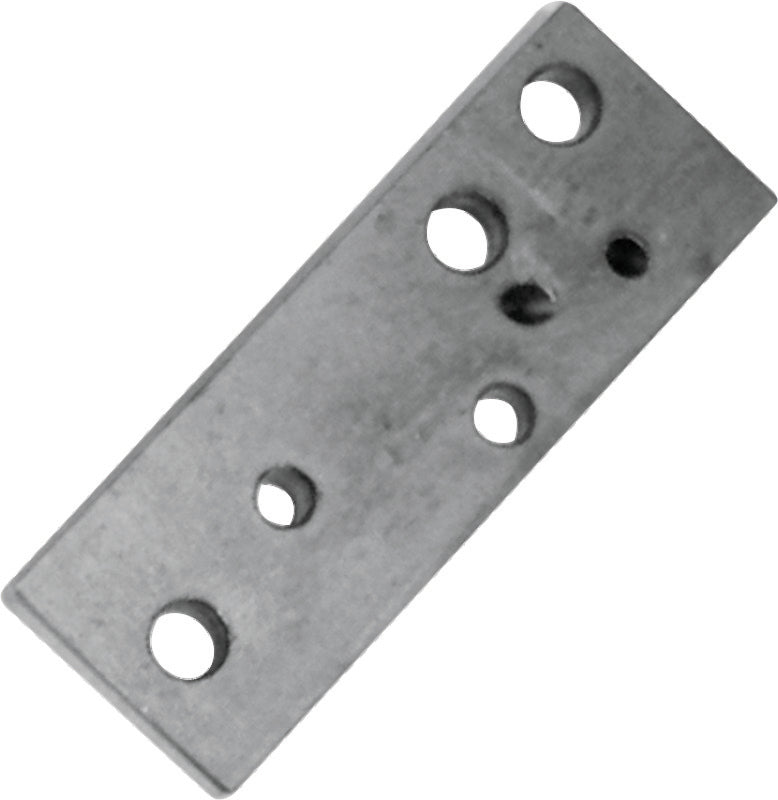

The S&S crankcase oil passage drilling jig is used to perform crankcase drilling modifications when installing an S&S oil pump assembly on early big twin crankcases. Made of hardened steel for durability, this fixture enables the builder to do four modifications.
- Primary chain oil supply passage from the breather valve gear cavity to the back side of the oil pump body on late generator and early alternator crankcases
- Pressure relief passage from behind the main oil pressure valve to the gear cavity on alternator crankcases
- Crankshaft and main bearings supply passage on early alternator crankcases
- Crankshaft and main bearings supply passage on generator crankcases
This Part Fits:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 1986-1990 | Harley-Davidson | FLST Heritage Softail | Base |
| 1988-1991 | Harley-Davidson | FLSTC Heritage Softail Classic | Base |
| 1990-1991 | Harley-Davidson | FLSTF Fat Boy | Base |
| 1987-1991 | Harley-Davidson | FXLR Low Rider Custom | Base |
| 1982-1991 | Harley-Davidson | FXRS Low Glide | Base |
| 1983-1991 | Harley-Davidson | FXRT Sport Glide | Base |
| 1977-1982 | Harley-Davidson | FXS Low Rider | Base |
| 1983-1985 | Harley-Davidson | FXSB Low Rider - Belt | Base |
| 1984-1991 | Harley-Davidson | FXST Softail Standard | Base |
| 1988-1991 | Harley-Davidson | FXSTS Springer Softail | Base |
| 1980-1986 | Harley-Davidson | FXWG Wide Glide | Base |
